My regular job (because I’m not a Dot Com Mogul yet) is a Production Technician - basically I get to play with high tech audio & video equipment all day. I was recently in Hawaii (that explains the lack of updates) and had to set up two 2×5 Plasma Video Walls.
What Is A 2×5 Plasma Video Wall?
A 2×5 Plasma Video Wall is a video wall which is made up of ten seemless plasma monitors. There were two rows and five columns of plasmas. The entire setup is monitored and controlled by a control computer and the signal is sent from a playback computer.
Setup Pictures
Here you can see the mounting brackets for the bottom row of screens. We built it on the ground and will use the Ginnie lift (the metal machine in the foreground with the vertical red paint) to lift it into the structure.
You can see both top and bottom rows of mounting brackets. We carried each piece of the top row up individually using the ladders. Just like the screens, there were ten brackets.
Were are ready to open the road cases and take the screens out. Each road case (black cases to the left of the frame) carries three plasma screens.
You can see that I am screwing in the hanging tools into the top of the screen (the screen is the silver objects in the cases).
We’ve hung three of the ten monitors.
We’re done hanging all of the monitors for this wall. Each screen weighs about 60 pounds.
Now we need to wire all of the monitors together.
Each plasma gets a signal cable (white serial cable) and are daisy-chained together. Then we run a DVI cable (black) to each monitor from a Distribution Amplifier. We also run power to each monitor, they use about 2 amps a piece (after powerup) and the entire wall is run by three circuits - and a fourth for the control equipment.
Here you can see that the video wall is powered up and receiving signal! I like to run the MatrixMania Screensaver because it looks so cool!
Video

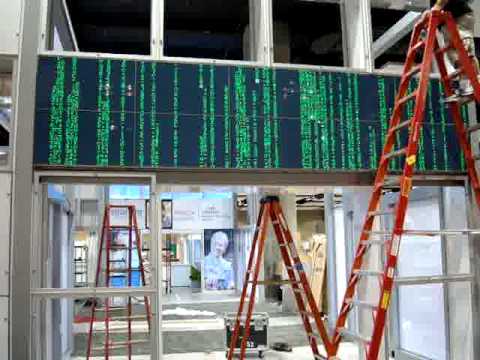

Here is a video of the completed wall (sorry about the lame voice over, I was feeling a little goofy) . Each wall took about four hours to complete - but thats only because I’m a badass. It would have taken the AngryNetworker all day because he’s fat and lazy
Bonus Material
Here’s another wall that I set up in Toronto. It was a 3×3 wall.
This is a shot of the control area - we didn’t have a lot of room to work with, so all of the equipment ended up behind the screens. The far computer is the control machine, the near one is the playback computer and the audio mixer is hanging there to the right.
Here is the Transformers trailer in high definition! I’m standing there so you can get an appreciation for the size of the monitors.
